[MITgcm-support] Question About Sea Surface Height (Eta) Behavior in MITgcm

[Jordi Iglesias]

Dear MITgcm community,

Over the past few months, I’ve been struggling to achieve realistic sea
surface height ("Eta") results in my MITgcm simulations. I’ve tried
several configurations,including non-hydrostatic, quasi-non-hydrostatic,
and nonlinear free surface options, but the SSH output often differs
significantly from the parent model (the Copernicus Mediterranean

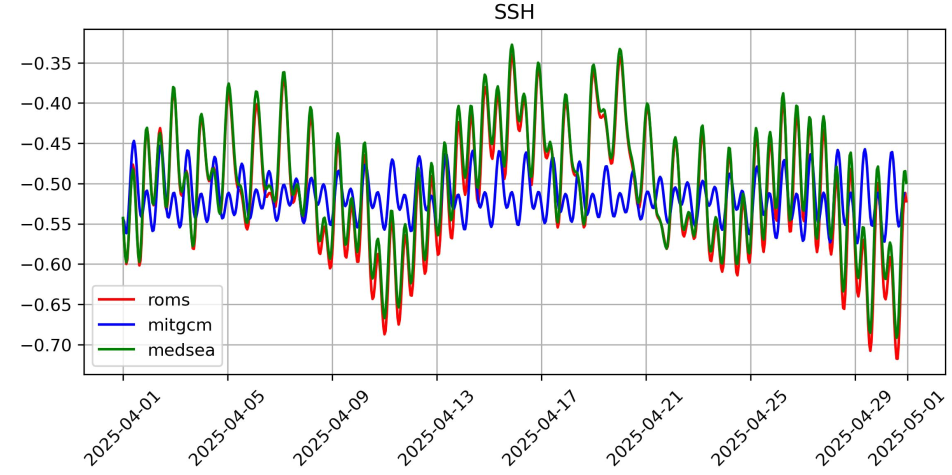

analysis, MEDSEA). I’ve attached an example and also shared a link to
illustrate the issue. I have tides configured, and the ssh is
initialized from MEDSEA data. However, when I compare the SSH output
with the parent model (or with a ROMS simulation, for example), it
appears to oscillate around a constant value that doesn’t evolve much
over time, or changes are very small.

A summary of my configuration: Horizontal resolution: 1.6 km, NW
Mediterranean Sea, Atmospheric forcing: ECMWF, initial ssh set with
pSurfInitFile, SphericalPolarGrid, quasiHydrostatic = .TRUE.,
nonlinFreeSurf = 3, rigidLid = .FALSE., implicitFreeSurface = .TRUE.,

If any additional parameters would help diagnose the issue, I’d be happy
to provide them.

The temperature, salinity, and velocity fields are generally in good
agreement with ROMS and MEDSEA, but I’d really like to improve the SSH
performance. Has anyone encountered a similar issue or found strategies
to improve SSH in MITgcm?

Thanks in advance for your help!

Best regards,
Jordi

https://saco.csic.es/s/c2fSgN5RWPRcDSQ
